Turning an LED on and Off with the micro:bit Buttons

Turning an LED on and Off with the micro:bit Buttons#

TODO

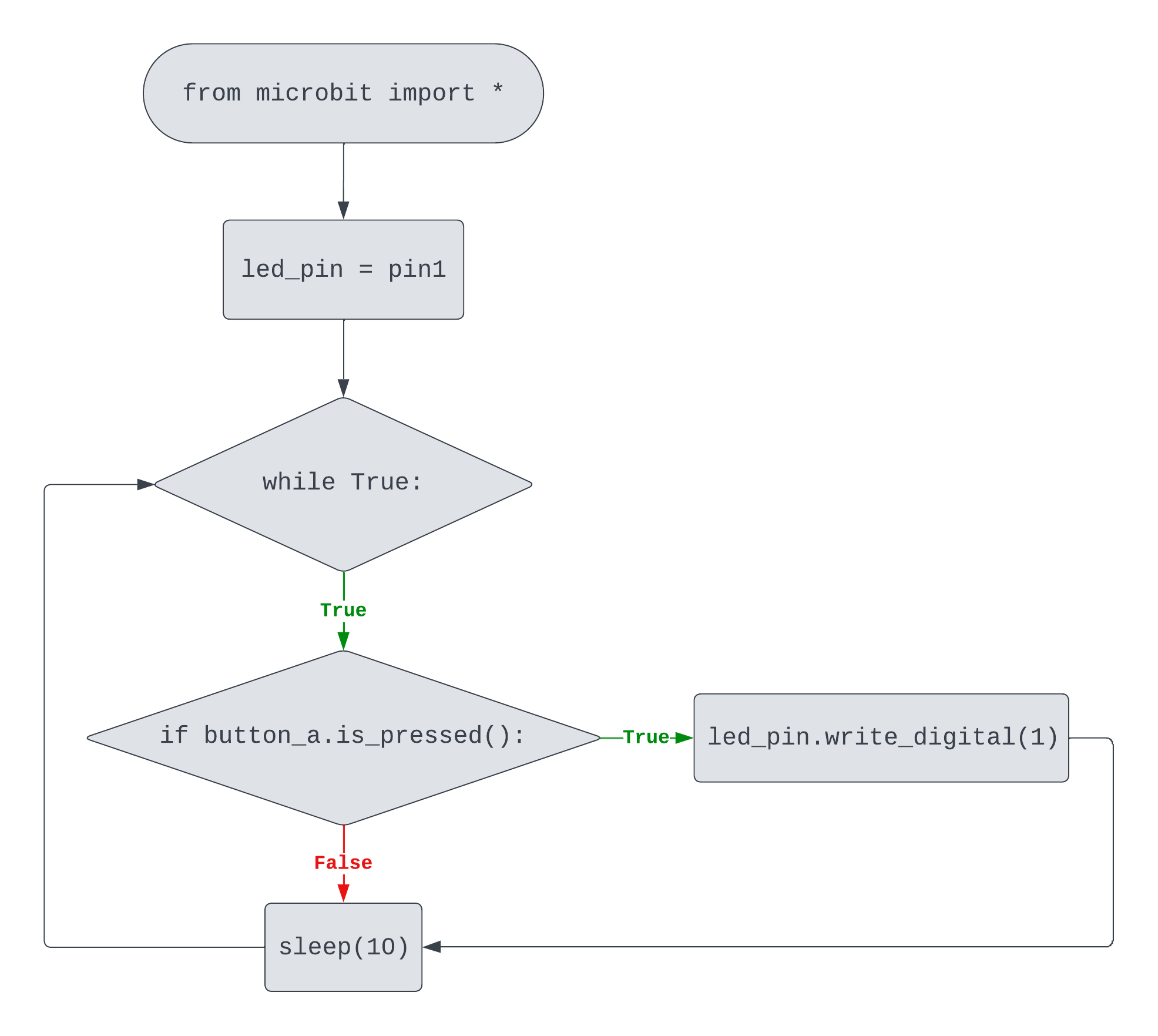

flowchart-button-led-01

# Imports go at the top
from microbit import *

# Set the LED pin
led_pin = pin1

# Code in a 'while True:' loop repeats forever
while True:
    # If button A is pressed
    if button_a.is_pressed():
        # Turn the LED on
        led_pin.write_digital(1)
    # Wait for 10ms (0.01 seconds)
    sleep(10)


TODO

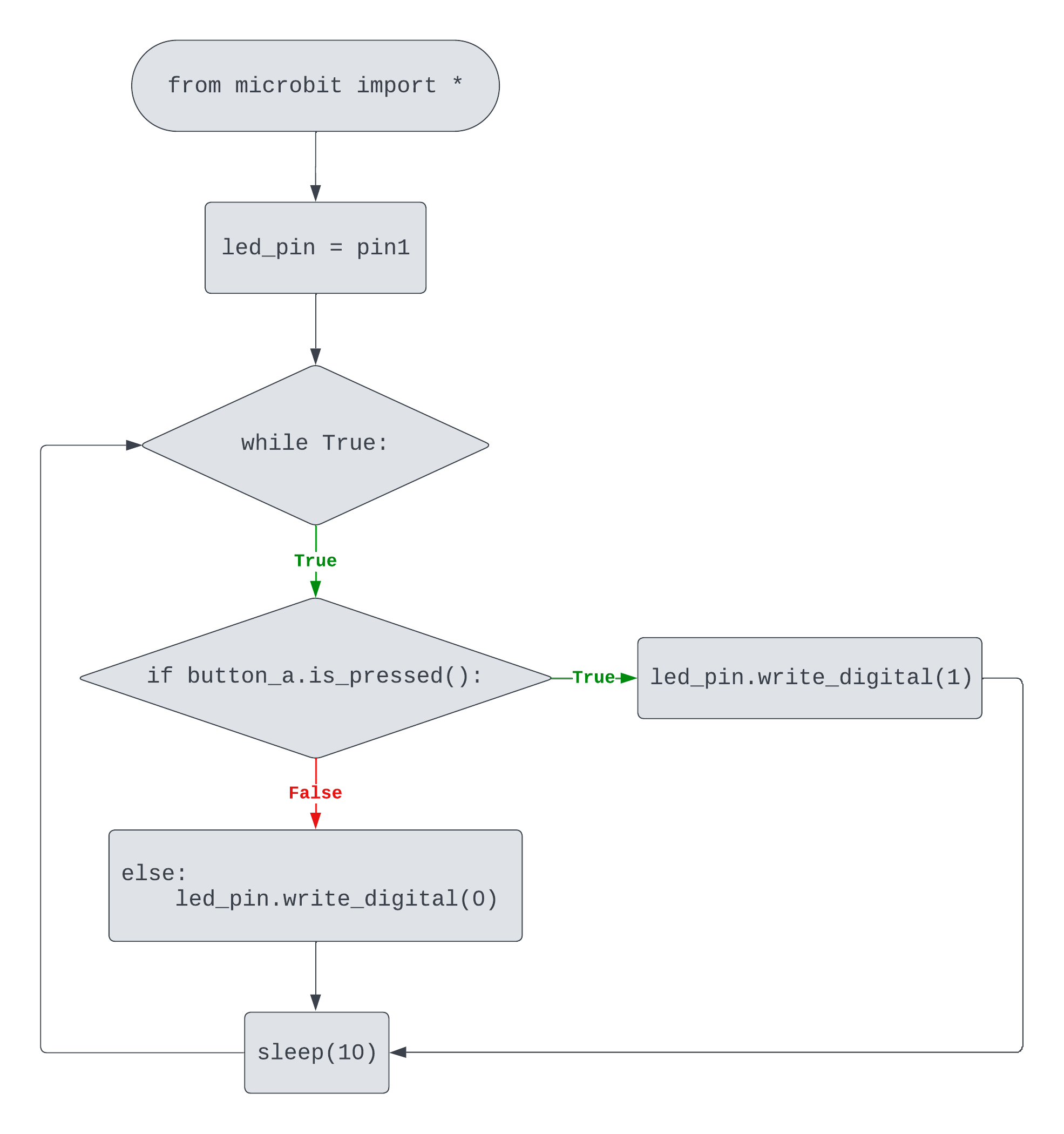

flowchart-button-led-02

TODO

# Imports go at the top
from microbit import *

# Set the LED pin
led_pin = pin1

# Code in a 'while True:' loop repeats forever
while True:
    # If button A is pressed
    if button_a.is_pressed():
        # Turn the LED on
        led_pin.write_digital(1)
    # Otherwise
    else:
        # Turn the LED off
        led_pin.write_digital(0)
    # Wait for 10ms (0.01 seconds)
    sleep(10)

TODO

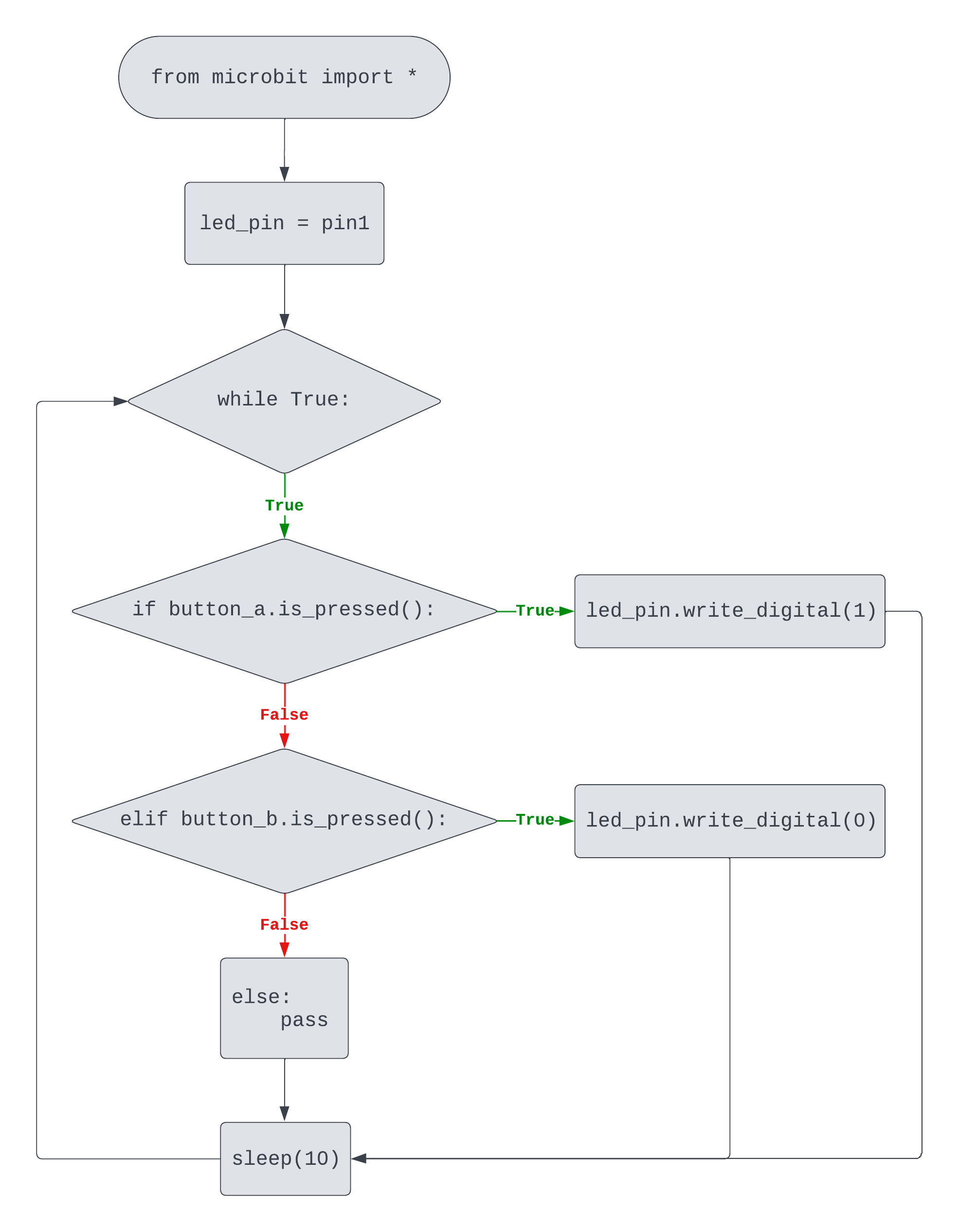

flowchart-button-led-03

TODO

# Imports go at the top
from microbit import *

# Set the LED pin
led_pin = pin1

# Code in a 'while True:' loop repeats forever
while True:
    # If button A is pressed
    if button_a.is_pressed():
        # Turn the LED on
        led_pin.write_digital(1)
    # If button B is pressed
    elif button_b.is_pressed():
        # Turn the LED off
        led_pin.write_digital(0)
    # Otherwise
    else:
        # Do nothing
        pass
    # Wait for 10ms (0.01 seconds)
    sleep(10)
