Complete and Incomplete Circuits#
TODO
Complete Circuits#
Incomplete Circuits#
TODO
Checkpoint: Complete or Incomplete Circuits#

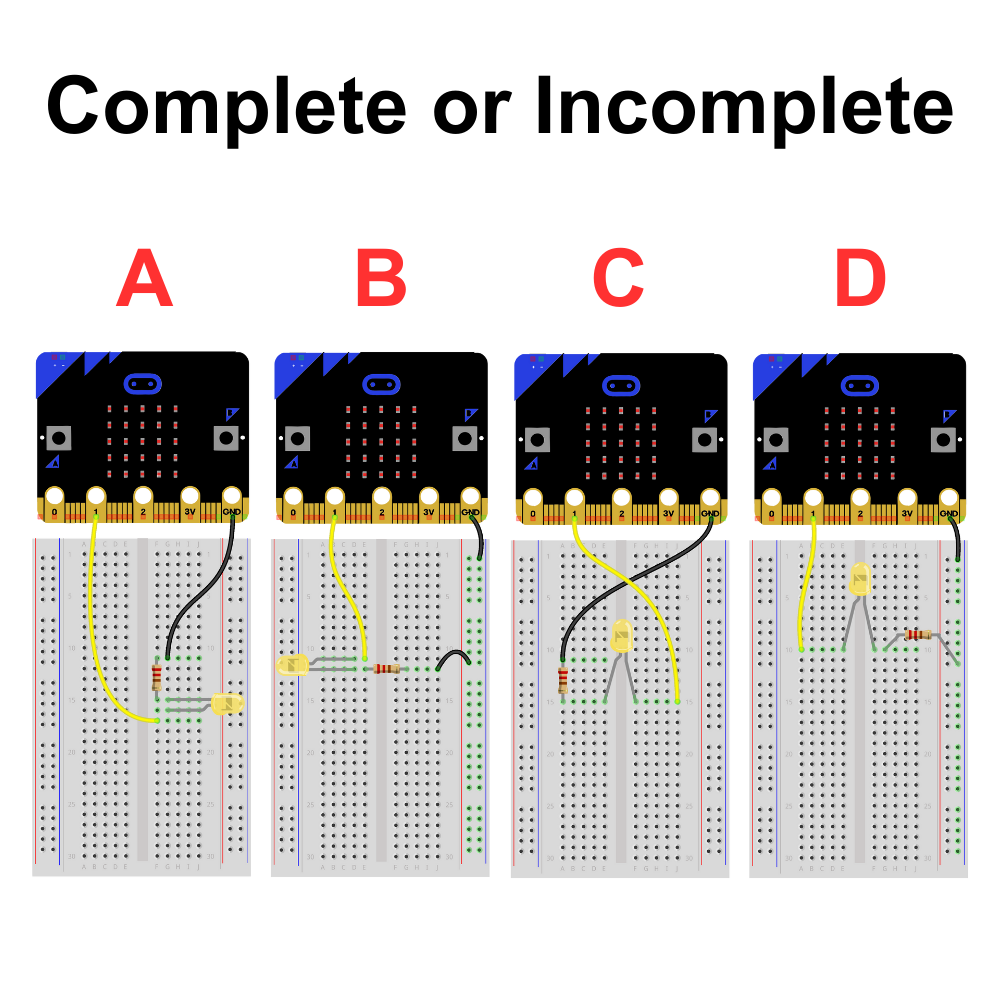

Which circuits are complete or incomplete circuits?
Click here to reveal the solutions.

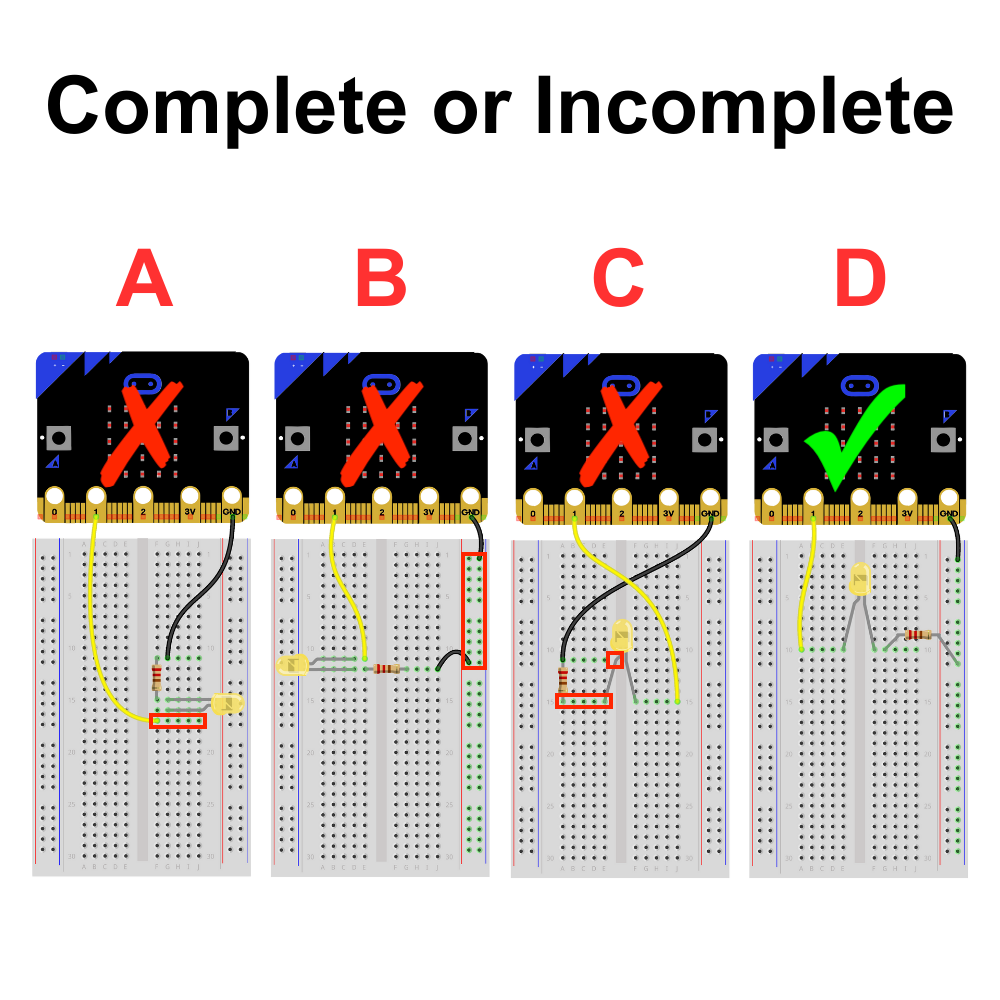

Solutions:
A: This is an incomplete circuit, because the input/output pin is not connected to the same row the anode of the LED is connected to.
B: This is an incomplete circuit, because the GND pin is not connected to the same row as the jumper attached to the resistor.
C: This is an incomplete circuit, because the annode is attached to the GND pin.
D: This is a complete circuit.
