Resistors

TODO

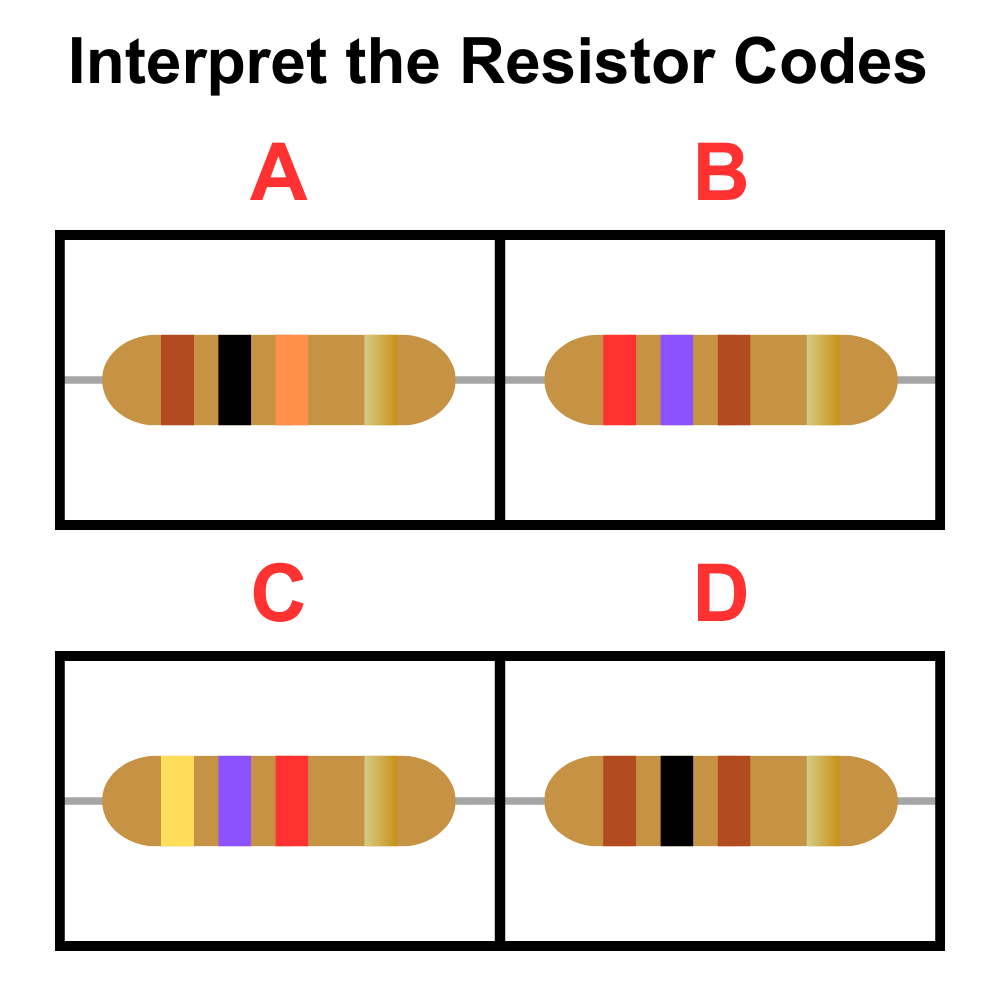

Checkpoint: Interpreting Resistor Values

Click here to reveal the solutions.

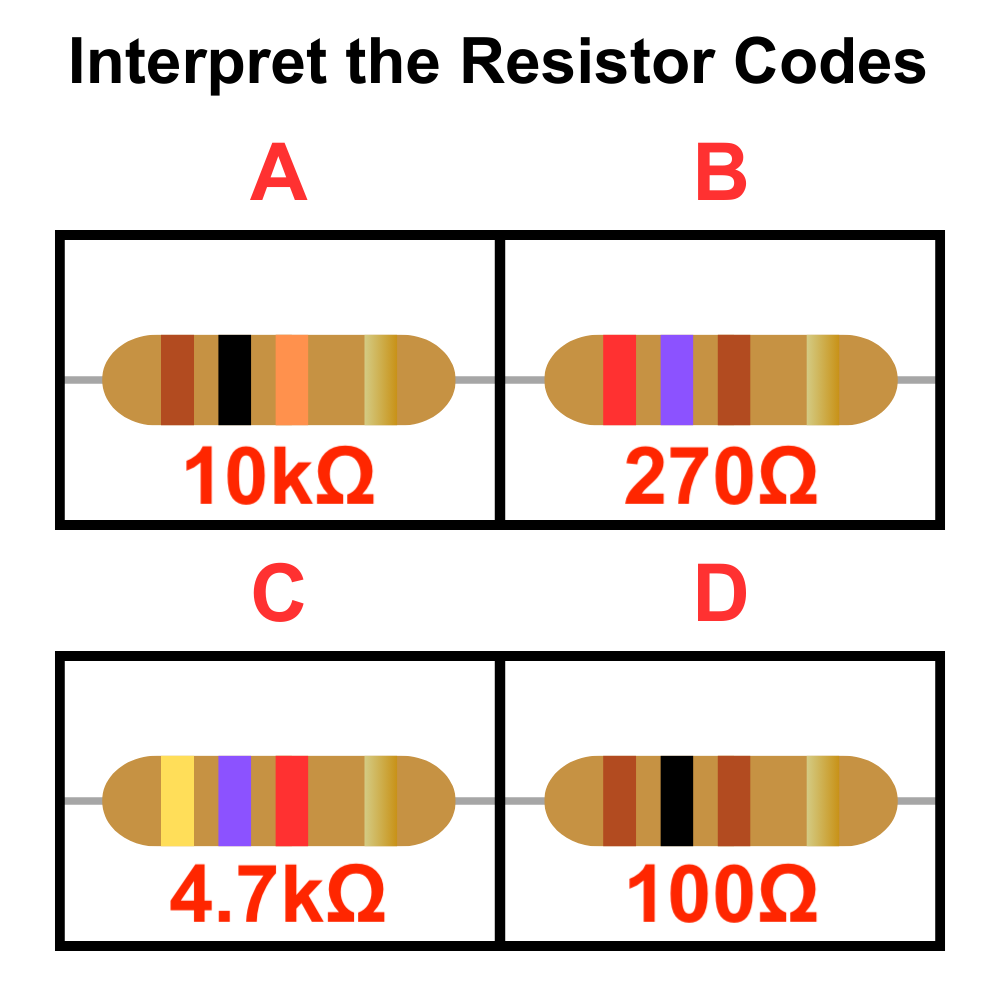

Solutions: A: 1, 0, 1kΩ ⟹ 10 × 1kΩ = 10kΩ
B: 2, 7, 100Ω ⟹ 27 × 10Ω = 270Ω
C: 4, 7, 100Ω ⟹ 47 × 100Ω = 4700Ω = 4.7kΩ
D: 1, 0, 10Ω ⟹ 10 × 10Ω = 100Ω
