Parts of an LED

TODO

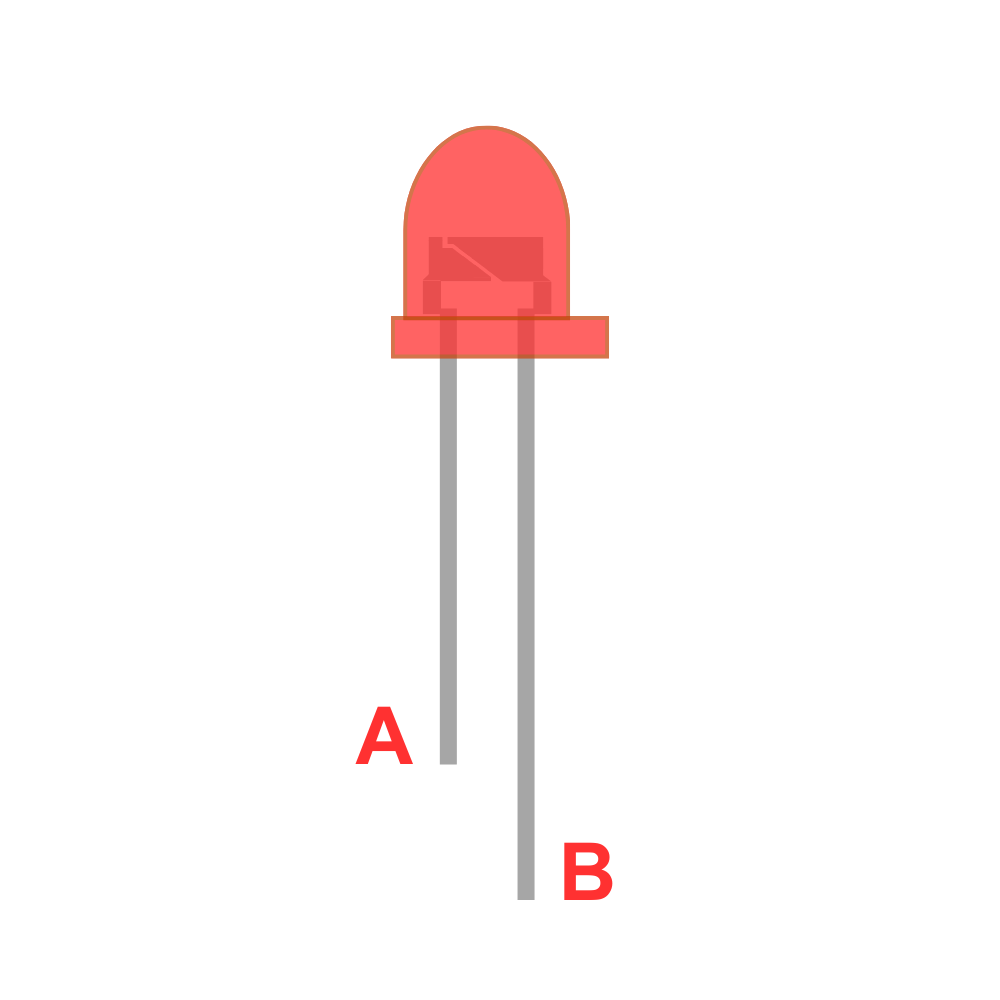

Checkpoint: Anode or Cathode

Which lead is the anode? Which lead is the cathode? What is the polarity of the different leads?

Click here to reveal the solutions.

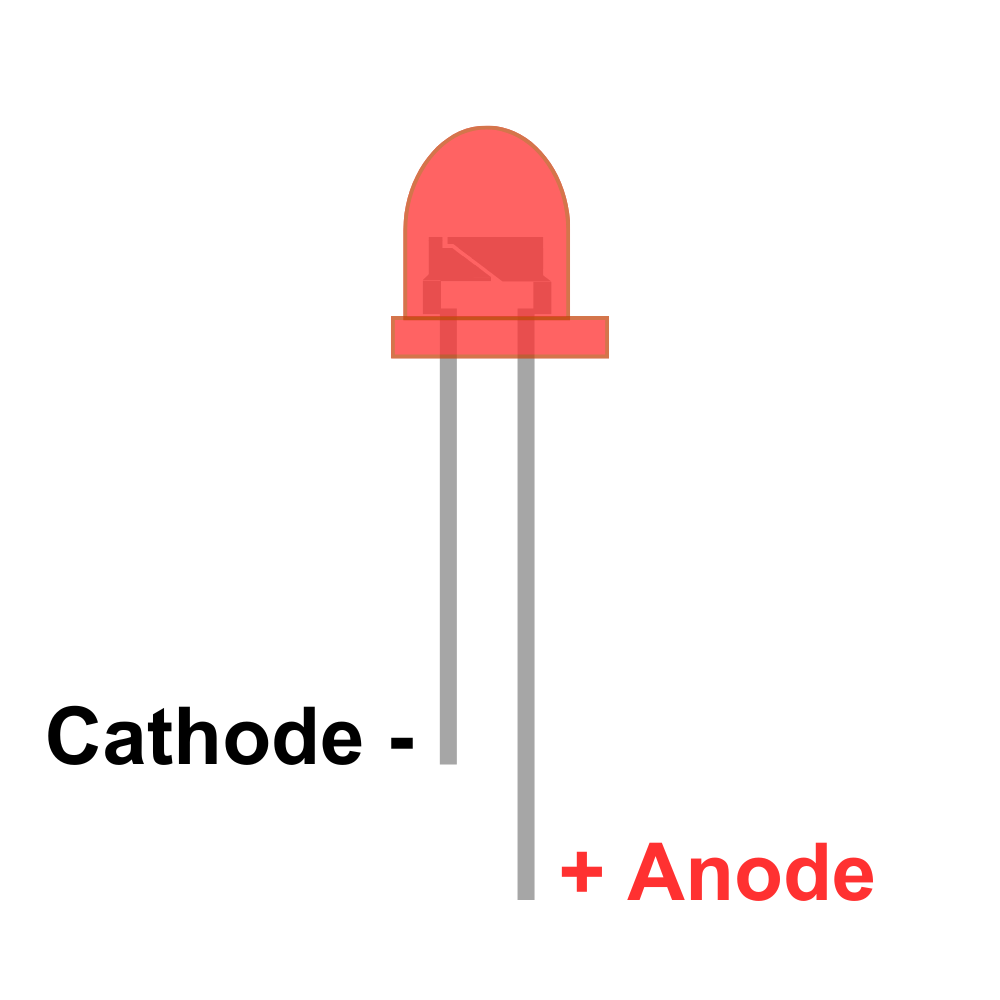

Solution:

A has the flat side and the shorter lead so it is the cathode. The polarity is negative.
B has the longer lead so it is the anode. The polarity is positive.
